Putere maxima incalzire:
Data de livrare: Marti, 07.04.2026
Cod Produs:
3301856
La achizitionarea acestui produs primiti
562
Lei pentru comenzile viitoare
- Descriere
- Review-uri (0)
Pompa de Caldura Ariston Nimbus Compact M Net R32 80M – Monobloc + ACM 180L
Sistem 3-in-1 monobloc cu unitate interna pe sol (Floor-Standing) – incalzire + racire + ACM 180L integrat, tevi hidraulice (nu frigorifice), instalare simplificata, COP 4,8, R32, Wi-Fi standard
MONOBLOC – TEVI HIDRAULICE FLOOR-STANDING – PE SOL ACM 180L – COP 3,1 – 63 MIN Clasa A+++/A++/A+ ACM COP 4,8 incalzire DC Twin Rotary R32 Wi-Fi Standard Alexa & Google Buffer 15L Optional
Compact M (Monobloc) vs. Compact S (Split) – diferenta esentiala de instalare
Nimbus Compact M este un sistem monobloc: unitatea interna (pe sol, cu rezervor ACM 180L) se conecteaza la unitatea externa prin tevi hidraulice izolate de 1" (apa), nu prin tevi frigorifice. Avantaj major: nu necesita un frigorist autorizat pentru instalarea tevilor, simplificand semnificativ instalarea si reducand costurile. Nimbus Compact S (split) conecteaza prin tevi frigorifice 3/8"-5/8" si necesita frigorist certificat. Performantele termice sunt identice, dar instalarea M este mai accesibila.
Incalzire
COP 4,8
la +7°C aer / 35°C apa
8 kW putere nominala
8 kW putere nominala
Racire Activa
EER 4,7
la 35°C aer / 18°C apa
7 kW putere frigorifica
7 kW putere frigorifica
ACM Integrat
63 min
Incalzire 180L (EN 16147)
233L apa calda disponibila
233L apa calda disponibila
8
kW
Putere incalzire (+7°C)
4,8
COP
Incalzire +7°C/35°C
180
litri
Rezervor ACM integrat
63 min
timp
Incalzire ACM 180L
233
litri
ACM disponibil la 40°C
140%
SCOP
Randament sezon ErP
35/42
dB(A)
Zgomot unitate interna
Nimbus Compact M 80 (Monobloc) vs. Nimbus Compact S 80 (Split) – diferente cheie
| Criteriu | Compact M 80 (Monobloc) | Compact S 80 (Split) |
|---|---|---|
| Tip sistem | Monobloc (tevi hidraulice) | Split (tevi frigorifice) |
| Tip tevi legatura interna-externa | Hidraulice 1" – apa | Frigorifice 3/8"-5/8" |
| Necesita frigorist autorizat | Nu | Da (tevi frigo) |
| Lungime disponibila tevi | 1m / 3m / 10m (flexibile) | 5m / 10m / 20m |
| Rezervor ACM integrat | 180 litri | 180 litri |
| Timp incalzire ACM 80 | 1h 03min | 55 minute |
| COP ACM (EN 16147) | 3,1 | 3,1 |
| ACM disponibil Vmax | 233L | 233L |
| COP incalzire (+7°C/35°C) | 4,80 | 4,80 |
| Randament sezon SCOP | 140% | 140% |
| Zgomot unitate interna | 35/42 dB(A) | 39/43 dB(A) |
| Greutate unitate interna | 127-134 kg | 133-157 kg |
| Dimensiuni unitate interna | 600 x 612 x 1818 mm | 600 x 612 x 1818 mm |
| Buffer 15L + vas exp. ACM optional | Da | Partial |
| Racorduri hidraulice instalatie | 1" / 3/4" M | – |
| Cod monofazat 80M | 3301858 | 3301894 |
Performante ACM integrate – Rezervor 180L – date EN 16147
| Varianta | Setpoint | Timp incalzire | COP ACM | ACM disponibil (Vmax) | Consum standby |
|---|---|---|---|---|---|
| 50 M | 53°C | 1h 31min | 3,1 | 233L | 38W |
| 80 M/M-T | 52°C | 1h 03min | 3,1 | 233L | 38W |
| 120 M/M-T | 51°C | 55min | 3,1 | 233L | 38W |
| 150 M/M-T | 51°C | 50min | 3,1 | 233L | 38W |
Performante incalzire – Nimbus Compact M 80 (date EN 14511)
| Conditii | Putere nom. | Putere absorbita | COP | Aplicatie |
|---|---|---|---|---|
| +7°C aer / 35°C apa | 8,00 kW | 1,67 kW | 4,80 | Pardoseala / fan coil – regim optim |
| -7°C aer / 35°C apa | 7,41 kW | 2,47 kW | 3,00 | Iarna moderata, pardoseala |
| +7°C aer / 45°C apa | 6,00 kW | 1,62 kW | 3,70 | Radiatoare temperatura medie |
| +7°C aer / 35°C apa (max) | 11,74 kW | – | Inverter | Putere maxima – zile friguroase severe |
| +7°C aer / 35°C apa (min) | 2,74 kW | – | Inverter | Modulare minima – temperaturi moderate |
Caracteristici principale
🔧
Monobloc – Tevi Hidraulice, Nu Frigorifice
Conectarea intre unitatea interna (pe sol) si cea externa se face prin tevi hidraulice cu apa 1" – nu prin tevi frigorifice. Nu necesita frigorist autorizat pentru instalarea conductelor.
🏗️

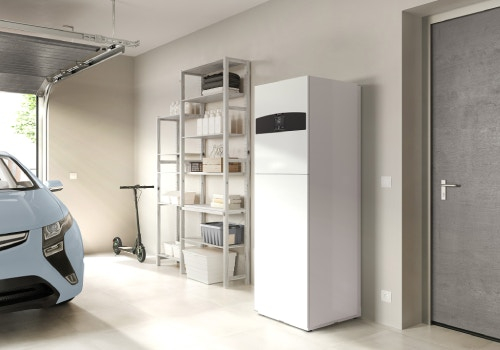

Floor-Standing – ACM 180L Integrat pe Sol
Unitate interna autonoma, stationara pe sol. Integreaza rezervorul ACM de 180L, schimbatorul cu placi, circuitul hidraulic si toate componentele intr-un corp vertical compact.
💧
Buffer 15L + Vas Expansiune ACM (Optional)
Unic in gama: rezervor buffer de 15L si vas de expansiune ACM pot fi incorporate in unitate – instalare mai curata, fara componente externe suplimentare.
⚡
DC Twin Rotary Inverter
Compresor cu doi cilindri rotativi si control DC inverter. Modulare continua 2,74-11,74 kW. Zero cicluri bruste on/off. Functionare de la -20°C temperatura aer.
🌿
Gaz Ecologic R32 – GWP 675
R32 cu GWP de 675 – de 3x mai mic decat R410A. Performanta termica superioara la aceeasi incarcare. Conform cu reglementarile F-Gas actuale.
📱

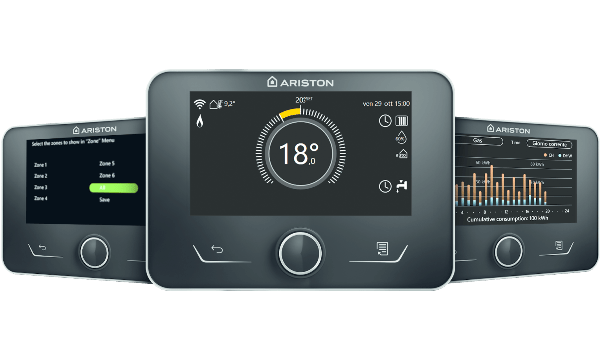

Wi-Fi + Alexa + Google Assistant
Conectivitate Wi-Fi inclusa standard. Control vocal prin Amazon Alexa si Google Assistant. Aplicatia Ariston NET. Teleserviciere 24/7 optionala.
☀️
Functie Fotovoltaica
Prioritizeaza automat energia solara autoprodusa pentru incalzire si preparare ACM – maximizand autoconsumul si reducand dependenta de retea.
🛡️
Anod Activ + Anod Magneziu Standard
Rezervorul ACM integrat protejat de dubla protectie anticoroziva standard – anod activ (curent impus) si anod de magneziu. Durabilitate maximizata.
❄️
Blue Finn® + -20°C / +35°C
Lamelele evaporatorului unittii externe cu tratament Blue Finn® antiinghet. Domeniu de functionare extins: -20°C aer exterior in mod incalzire.
Variante disponibile – Nimbus Compact M Net R32 (date EN 14511 / EN 16147)
| Specificatie | 50 M | 80 M/M-T | 120 M/M-T | 150 M/M-T |
|---|---|---|---|---|
| Putere termica nom. (+7°C/35°C) | 5 kW | 8 kW | 12 kW | 15 kW |
| COP la +7°C / 35°C | 5,00 | 4,80 | 4,90 | 4,70 |
| COP la -7°C / 35°C | 2,90 | 3,00 | 3,20 | 3,10 |
| Putere racire (35°C/18°C) | 4,6 kW | 7 kW | 10,7 kW | 12,5 kW |
| EER racire (35°C/18°C) | 4,60 | 4,70 | 5,10 | 4,70 |
| Randament sezon SCOP | 136% | 140% | 143% | 151% |
| Capacitate rezervor ACM | 180 litri (toate variantele) | |||
| Setpoint ACM | 53°C | 52°C | 51°C | 51°C |
| Timp incalzire ACM 180L | 1h 31min | 1h 03min | 55min | 50min |
| COP ACM (EN 16147) | 3,1 (toate variantele) | |||
| ACM disponibil Vmax | 233L | 233L | 233L | 233L |
| Zgomot unitate interna | 35/42 dB(A) | |||
| Greutate unitate interna | 127-134 kg | |||
| Rezistente electrice backup | 2+2 kW | 2+2 kW | 2+2+2 kW | 2+2+2 kW |
| Clasa energetica HP 35°C/55°C | A+++/A++ | A+++/A++ | A+++/A++ | A+++/A+++ |
| Clasa energetica ACM | A+ (toate variantele) | |||
| Cod monofazat | 3301856 | 3301858 | 3301862 | 3301866 |
| Cod trifazat | – | 3301860 | 3301864 | 3301868 |
| Cod unitate externa 80M | 3630224 (mono) / 3630225 (tri) | 3630226/3630227 | 3630228/3630229 | |
Sisteme de protectie, siguranta si fiabilitate
- Anod activ (curent impus) + anod de magneziu – dubla protectie standard rezervor ACM integrat
- Rezistente electrice backup 2+2 kW – functionare garantata la temperaturi extreme
- Filtru magnetic multifunctional incorporat – protejeaza pompa si schimbatorul cu placi
- Vas de expansiune 12L incorporat pentru circuit incalzire
- Rezervor buffer 15L + vas expansiune ACM incorporabile optional
- Termostat de siguranta cu resetare manuala – protectie supraincalzire
- Supapa de siguranta + aerisitor automat incluse in unitate
- Traductor de presiune si manometru incorporat
- Clasa de protectie electrica IP24 (unitate externa)
- Evaporator Blue Finn® – tratament antiinghet lamele exterioare
- Kit Exogel antiinghet pasiv recomandat pentru unitate externa
Specificatii tehnice complete – Nimbus Compact M Net R32 80M (EN 14511 / EN 16147)
| Tip sistem | Monobloc + rezervor ACM 180L integrat – unitate interna pe sol (FS) |
| Agent frigorific | R32 (GWP = 675) |
| Incarcare refrigerant | 1.400 g |
| Tip compresor | DC Twin Rotary Inverter |
| Putere termica nominala (+7°C/35°C) | 8,00 kW |
| Putere termica min/max (+7°C/35°C) | 2,74 / 11,74 kW |
| COP nominal la +7°C / 35°C | 4,80 |
| COP nominal la -7°C / 35°C | 3,00 |
| COP nominal la +7°C / 45°C | 3,70 |
| Putere frigorifica nominala (35°C/18°C) | 7,00 kW |
| EER nominal la 35°C / 18°C | 4,70 |
| Randament sezon SCOP | 140% |
| Energie absorbita anual | 4.405 kWh/an |
| Temperatura min./max. aer exterior (HP) | -20°C / +35°C |
| Temperatura min./max. apa tur (incalzire) | 20°C / 60°C |
| Temperatura min./max. aer exterior (racire) | 5°C / 23°C |
| Temperatura min./max. apa tur (racire) | 10°C / 43°C |
| Capacitate rezervor ACM integrat | 180 litri |
| Setpoint ACM (80M) | 52°C |
| ACM disponibil la 40°C (Vmax) | 233 litri |
| Timp incalzire ACM 180L (80M) | 1h 03min (EN 16147, fara rezistente) |
| COP ACM (EN 16147) | 3,1 |
| Consum standby ACM (Pes) | 38 W |
| Clasa energetica ACM | A+ |
| Nivel zgomot unitate interna | 35 / 42 dB(A) |
| Putere sonora unitate externa | 57 dB(A) |
| Rezistente electrice backup | 2+2 kW |
| Putere maxima absorbita unitate interna | 4,10 / 4,25 kW |
| Vas expansiune incalzire incorporat | 12 litri |
| Buffer optional | 15 litri (incorporabil) |
| Vas expansiune ACM | Incorporabil optional |
| Debit apa minim/nominal | 1.050 / 1.400 l/h |
| Racorduri hidraulice instalatie | 1" M |
| Racorduri ACM | 3/4" M |
| Racorduri unitate externa | 1" M (hidraulice) |
| Tensiune monofazat | 230V / 1 faza / 50Hz |
| Tensiune trifazat | 400V / 3 faze / 50Hz |
| Greutate unitate interna | 127-134 kg |
| Greutate unitate externa 80M | 91 kg |
| Dimensiuni unitate interna (L x P x H) | 600 x 612 x 1818 mm |
| Clasa energetica incalzire 35°C / 55°C | A+++ / A++ |
| Clasa energetica ACM | A+ |
| Clasa de protectie electrica | IP24 |
| Conectivitate | Wi-Fi standard – Ariston NET |
| Control vocal | Amazon Alexa, Google Assistant |
| Teleserviciere | 24/7 (optionala) |
| Cod produs monofazat 80M | 3301858 |
| Cod produs trifazat 80M-T | 3301860 |
| Cod unitate externa 80M | 3630224 (monofazat) |
| Cod unitate externa 80M-T | 3630225 (trifazat) |
Recomandat pentru
Case individuale cu garaj / spatiu tehnic Incalzire in pardoseala Fan coil incalzire + racire Instalatori fara certificare frigorista Inlocuire centrala termica + boiler Case cu panouri fotovoltaice Constructii noi – solutie termica completa Familii cu consum ACM ridicat Smart home (Alexa / Google) Zone fara retea de gaz Eligibil AFM / Casa Verde Clasic
